Automatic Partition Assembler

Short Description:

Automatic Partition Assembler is to get the Cross Partition automatically in high efficiency and save labor cost a lot.

Structure character

* Lengthways and horizontal sheets do decussation inserting.

* Automatic inserting each kinds clapboard and block

* With a fault detection device, stop if the paper jammed


  • Brand: GOJON
  • Manufactured place: QINGDAO,CHINA
  • Size: Depends on customer requirement
  • Electrical brand: Simens,Schneider,etc
  • Capacity: 500sets per year
  • Product Detail

    Product Tags

    To get more details about our Carton box Smart equipments, pls visit here

    Function

    To get the Cross Partition automatically in high efficiency and save labor cost a lot.

    15

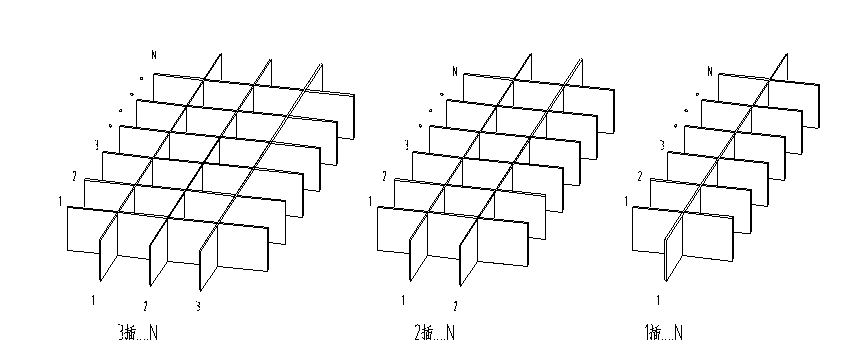

    Partitions Form Sketch

    16

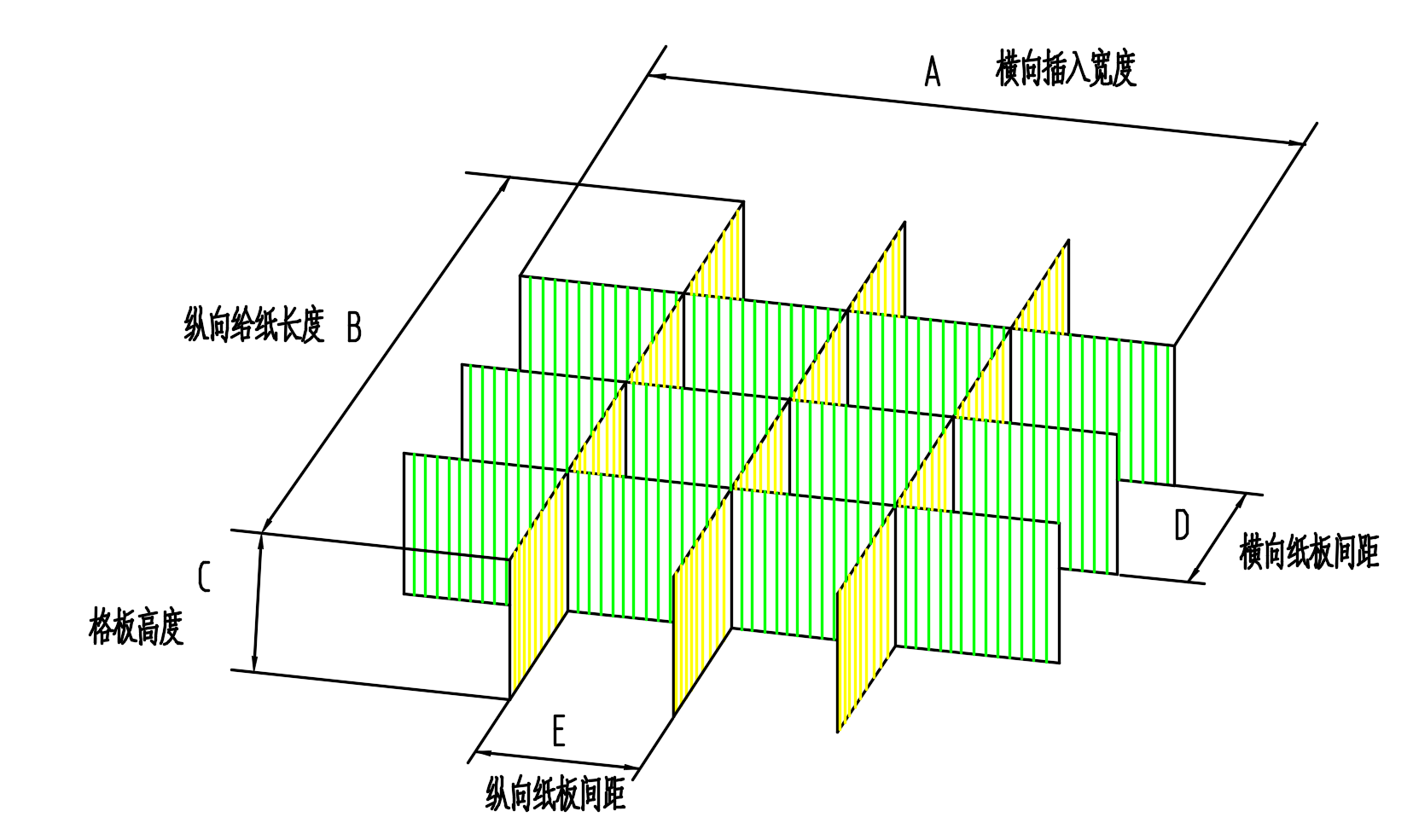

    Automatic Inserting Machine Specification List

    Structure character

    * Lengthways and horizontal sheets do decussation inserting.

    * Automatic inserting each kinds clapboard and block

    * With a fault detection device, stop if the paper jammed

    Tech.parameter

    Model Dimension(L x W x H m include sheet delivery ) Total power
    450-3L 7.3×2.0×1.9 7

    Clapboard List

    17
    Name Unit   Data
    Horizontal inserting width: A

    mm

    120~900
    Lengthways sheets length: B

    mm

    210~450
    Clapboard Height: C

    mm

    70~300
    Horizontal clapboard distance: D

    mm

    20~400
    Lengthways clapboard distance:E

    mm

     45-850
    Lengthways sheets No.

    slice

    1-6
    Horizontal  clapboard No.

    slice

    1-21
    Carton inserting mouth width:F

    mm

    >board thickness
    Carton thickness:G

    mm

    1.5~8mm

    The testing partition board should meet the following requirements

    Partition board molding:die cutting molding

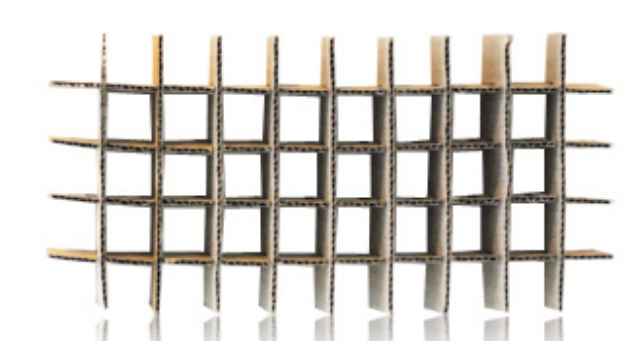

    Partition board interval should have bevel/oblique opening(as shown in the following figure)

    Customer Prepare

    1、 Air pressure: Work  normal 0.4-0.8Mpa

    2、Power Requirements: 380v  50Hz Three-phase four-wire syste

    3、Electric wire need join to operate cabinet, and pneumatic pipeline need join to main pneumatic pipeline.

    4、Test machine use die-cutting-clapboard

    5、Machine use lubricate oil and grease

    6、Foundation work.
